The in-wall charger for electric toothbrushes.

A built-in bathroom solution that replaces countertop chargers with a clean, permanent installation. Designed for everyday use.

Now Compatible with Oral-B & Philips

Trusted by thousands of UK homeowners.

Rated

Cable-free design

UK Bathroom Safe

Modern Finish

Always Charged

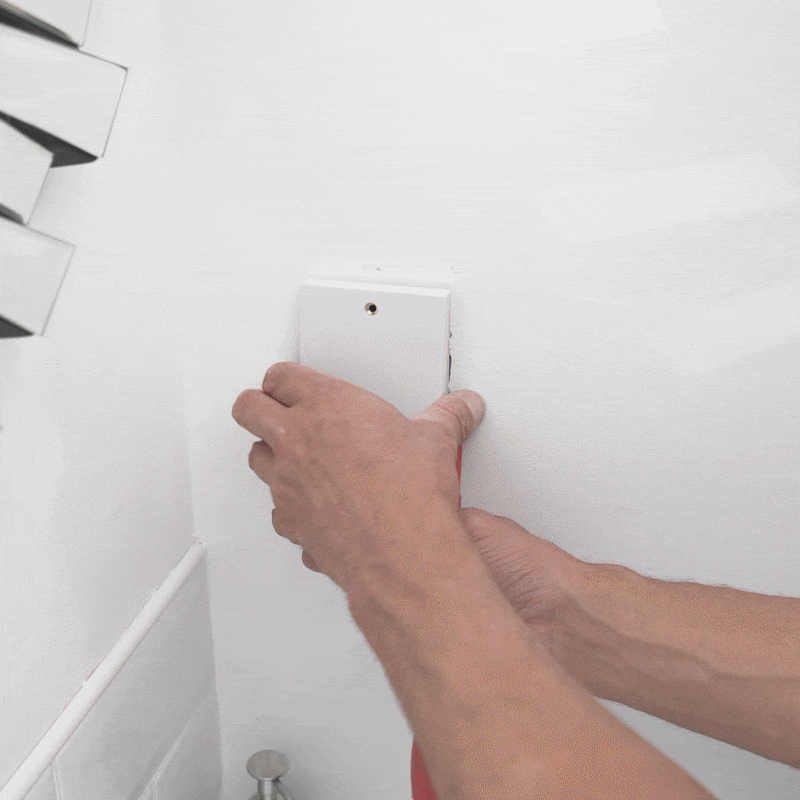

How TBCharge fits in your bathroom

TBCharge installs directly into your bathroom wall, in the same position as a shaver socket or existing toothbrush charger.

It replaces countertop charging bases and loose cables with a built-in unit that keeps your toothbrush charged where you use it.

Mounts into the wall

Removes the need for surface chargers

Waterproof

Toothbrush Compatibility

Oral-B Compatibility

Compatible with most Oral-B toothbrushes, including iO2–iO6 models. Not compatible with iO7–iO10 or Pulsonic series. If your toothbrush uses the Oral-B 3757 charger, it will also work with ProofVision.

Philips Compatibility

Compatible with most Philips toothbrushes, including the 1000–7000 Series. Not compatible with 9000 Series, DiamondClean, DiamondClean Smart, or DiamondClean Prestige models.

How the TBCharge Works

TBCharge is built for straightforward installation into standard UK electrical setups, making it a simple upgrade during renovations or retrofits.

Designed to work with common back box depths and wiring configurations, it can be installed by a qualified electrician with minimal adjustment to existing infrastructure.

Compatible with standard UK wiring systems

Suitable for new builds and retrofit projects

Quick installation by a qualified electrician

Choose Your TBCharge Model

Available for Oral-B or Philips Toothbrushes*

The Original TBCharge

tbcharge with shaver socket

dual tbcharge

* The TBCharge is available in two versions – one for Oral-B toothbrushes and one for Philips toothbrushes. Each charger works with one brand only and is not compatible with both.

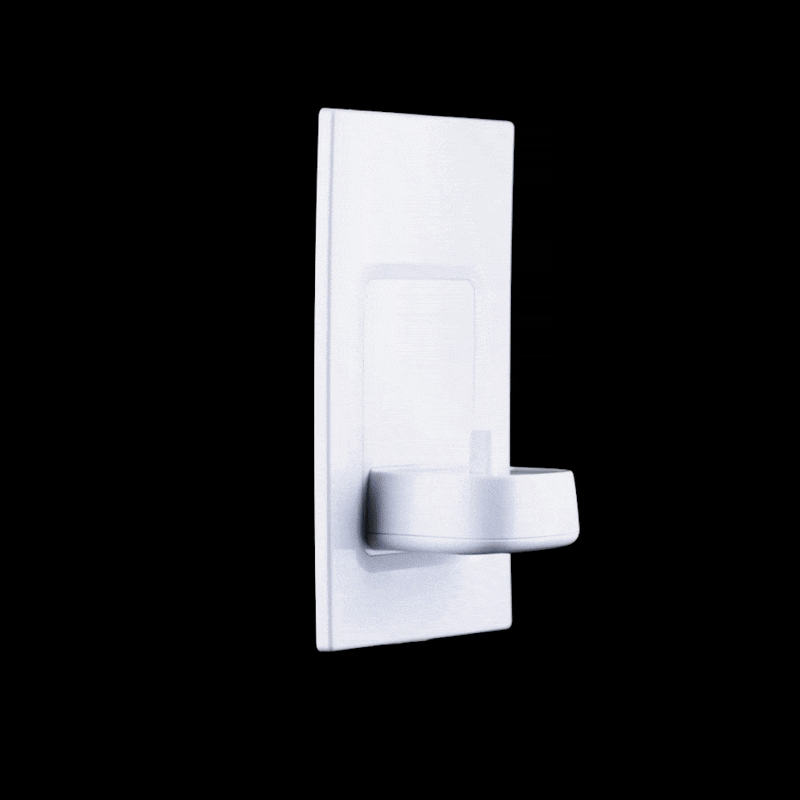

Pick Your Faceplate Colour

Choose a faceplate colour to match your decor. All TBChargers come with a standard white faceplate.

Black

Compatible with the Original, Dual & Shaver range.

Brushed Steel

Compatible with the Original, Dual & Shaver range.

Polished Steel

Compatible with the Original, Dual & Shaver range.

Brushed Brass

Compatible with the Dual & Shaver Socket range.

Loved by thousands of UK homeowners

Simple installation and superb product for an expensive looking solution to charging your toothbrush.

Really happy with the purchase it looks and works well in my bathroom.

A good product that does what it says. Only recently installed, so this is my immediate view.

Really easy to fit. Used click and collect, picked up half an hour after ordering.

Great product, just what I needed. Great to be able to get read of the charging leads. Nice design & appears to be a well made, quality product.

Compact and stylish . Much better than having a wired charger lying around.

Took about 20 minutes to swap the units out and it all looks really neat without having the toothbrush charger cable hanging loose or being knocked out.

Great replacement for our shaver socket save the trailing leads of the usual tooth brush charger

Bought this twice for both of my bathrooms, they are perfect for the new bathroom. Convenient and looks nice - highly recommend.

FAQs

What zones can I install the TBCharge in a bathroom?

The TBCharge models are all manufactured with a minimum IPX4 water ingress protection rating so they are suitable to be installed in a bathroom environment.
We recommend that they are only installed in zones 2 or 3, which means they cannot be installed directly next to a bathtub.

Is this compatible with my toothbrush?

Oral-B: Works with most models, including iO2–iO6. (Not compatible with iO7–iO10 or Pulsonic series.)

Philips: Works with most models, including 1000–7000 Series. (Not compatible with 9000 Series, DiamondClean, DiamondClean Smart, or DiamondClean Prestige.)

Will my toothbrush go faulty if I constantly leave it on the TBCharge charging dock?

The charging current is so low that leaving a toothbrush handle on constant charge will not be an issue regarding product longevity or safety. The induction charging current depends on the toothbrush model being charged, but in all cases, it is low (10s of milliamps). Therefore, the battery is never really regarded as full even when it reaches its maximum capacity, it is simultaneously losing charge, and at this stage, it is in “maintenance mode”.

For the lower-end Vitality model, which has a NI-MH battery, the Oral B website recommends that “for optimal performance, you can keep your Vitality brush always on the connected charger when not in use”. This will also apply to other models with NI-MH batteries.

Higher-end models with li-ion batteries will usually have overcharging protections for additional safety.

What faceplate do I need for my TBCharge model?

There are 2 variations available of the faceplates for the TBCharge range:

1. The Original TBCharge (PV10P) has its own unique faceplate range as detailed below.

PV10-PS-FR – Polished Steel
PV10-BS-FR – Brushed Steel
PV10-B-FR – Matt Black

2. The Dual TBCharge (PV11P) and TBCharge with Shaver Socket (PV12P) use the same faceplate model as detailed in the list below.

PV11-PS-FR – Polished Steel
PV11-BS-FR – Brushed Steel
PV11-B-FR – Matt Black
PV11-BRS-FR – Brushed Brass

How do I wire the TBCharge?

The TB charge range of products are supplied with an Isolating transformer, similar to a shaver socket, and should be considered the same as a shaver socket for installation purposes.

There are 3 options

1. Replacing an existing shaver socket

This is the simplest install, and the wiring should simply be swapped from the existing shaver socket to the TB Charge product

Where no existing power supply exists you will need to use options 2 or 3

2. Existing lighting circuit

Taking a feed wire from the bathroom lighting circuit to connect to the charger. This is generally the most popular method as an existing 15 Amp lighting circuit should be present in most bathrooms. This should be connected with 1mm twin & earth cable from the permanent live loop in the ceiling to the TBCharge

3. Existing socket circuit

If taking a feed from a 30 Amp socket (power) circuit, its essential that a FCU fused at a maximum of 3 amps is placed between the charger and the power circuit. The cable from the existing socket circuit to the FCU should be 2.5mm twin and earth and the cable from the FCU to the TBCharge should be 1mm twin and earth.

All Electrical circuits should be protected with Earth leak Curcuit breakers (ELCB).

Option 1 can be completed by a competent person.

Options 2 & 3 should be carried out by a qualified electrician.

If you are unsure on installation, please contact ProofVision on either 0203 4111 693 or technical@proofvision.co.uk

Can I surface mount a TBCharge model?

The ProofVision TBCharge models are not able to be surface mounted, only embedded into the wall using a double-gang knockout box.

The dimensions of the charger are larger than the standard dimensions of a surface mount box.
